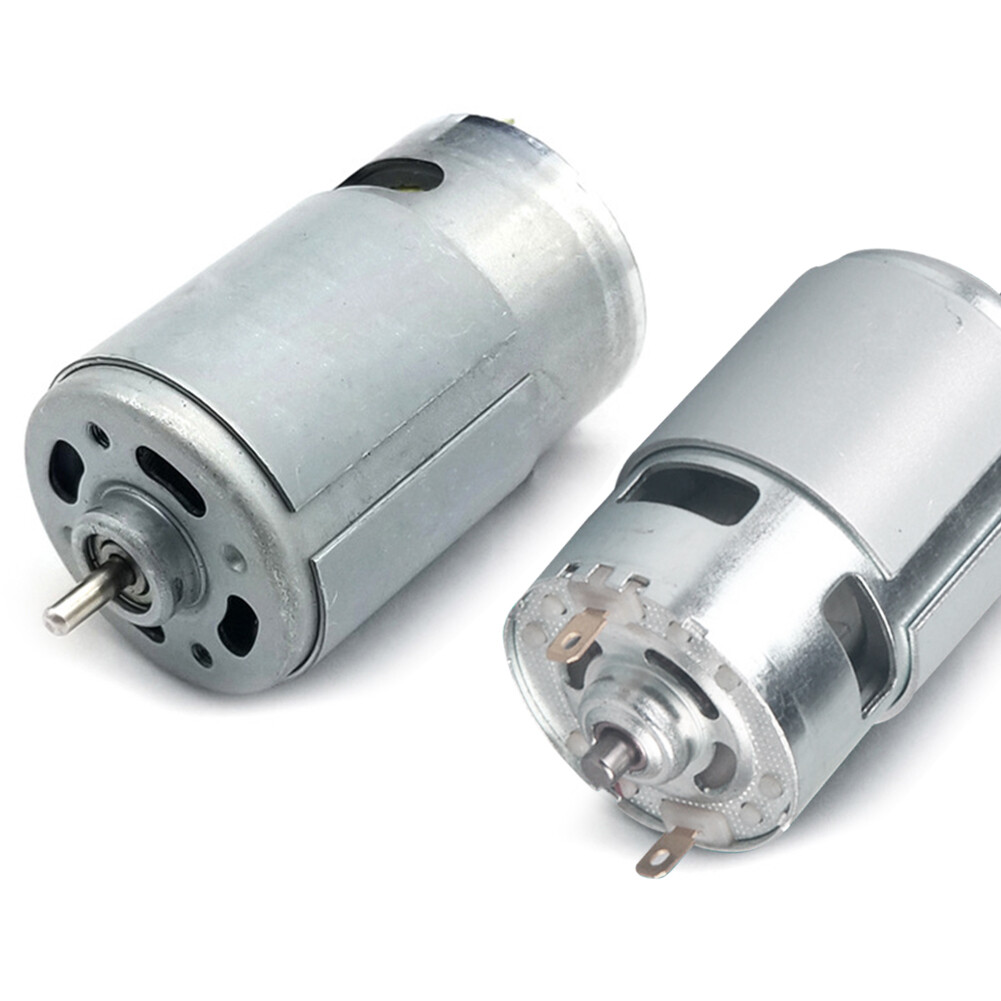

RS 550/RS 775 Series DC Motors Replacement Electric DIY Drills 12v

PLEASE NOTE: This is a variation listing.  You must select the motor model you need to purchase from the drop down menu. Edition: 12v DC 550 Motor (12000RPM) " Model RS-550 (550 Series) 12v Fan Cooled DC Motor Shape of Motor Housing: Round Type of Motor: Carbon Brushes Construction: Anisotropic Magnet or Rare Earth Magnet Optimal Voltage: 12 volts Operating Voltage Range: ~9v - 15v Unloaded (free spinning): No Load RPM: 12460 No Load Current: 0.70A Stalled (max load): Stall Torque: 302.7 mN.m Stall Current: 31.57 amps At Maximum Effic.: Max Effic. Percent: ~79% Max Effic. Torque: 39.23 mN.m Max Effic. RPMs: 10846 Max Effic. Current: 4.70 amps Max Effic. Output Power: 44.6 Watts At Maximum Output Power: Max Output Power Effic. Percent: 51% Max Output Power Torque: 151.4 mN.m Max Output Power RPMs: 6230 Max Output Power Current: 16.15 amps Max Output Power: 98.8 Watts Dimensions: Motor Body Length: 2.26in (57.5mm) Motor Body Diameter: 1.41in (35.8mm) Weight: ~8.6oz (215g) Mounting holes (2): M3 Mounting Holes: 25mm apart Shaft Diameter: 3.175mm / 1/8th inch Shaft Style: Round Shaft Length: 16mm (~12mm usable exposed) Designed as a replacement for some children’s ride on vehicles and Fisher Price Power Wheels Also suitable for hobby, DIY, and repair/replacement applications such as in Power Tools, Drills, and other cordless outdoor tools. As well as a popular choice for Do-it-Yourself choice for Electronics projects, Robotics, Power Wheels, Gate Openers, and More. Fit your existing gear or pinion for your application for 1000s of uses *** PLEASE NOTE: Will not work or fit in all models, be sure to check your specific application's requirements before purchasing If you're replacing a motor please be sure to verify the motor matches Edition: 16.8v DC 775 Motor (24000RPM) Model RS-775 (755 Series) 16.8v 10T DC Motor Internal Winding: 10 turns per armature Shape of Motor Housing: Round Type of Motor: Carbon Brushes Construction: Anisotropic Magnet or Rare Earth Magnet Optimal Voltage:: 16.8 volts Operating Voltage Range: ~12v - 24v Unloaded (free spinning): No Load RPM: 24300 No Load Current: 3A Shaft Style: Round Shaft Length: 13.5mm (~9.5mm usable exposed) Designed as a replacement for some children’s ride on vehicles and Fisher Price Power Wheels Also suitable for hobby, DIY, and repair/replacement applications such as in Power Tools, Drills, and other cordless outdoor tools. As well as a popular choice for Do-it-Yourself choice for Electronics projects, Robotics, and more! *** PLEASE NOTE: Will not work in all models, be sure to check your application's requirements before purchasing If you're replacing a motor please be sure to verify the motor matches Edition: 24v DC 550 Motor (35000RPM) Model RS-550 (550 Series) 24v 35000rpm Fan Cooled DC Motor Shape of Motor Housing: Round Type of Motor: Carbon Brushes Construction: Anisotropic Magnet or Rare Earth Magnet Optimal Voltage: 24 volts Operating Voltage Range: ~18v - 28v Unloaded (free spinning): No Load RPM: 34957 No Load Current: 2.3A Stalled (max load): Stall Torque: 277.0 mN.m Stall Current: 56.01 amps At Max Efficiency: Max Effic. %: ~52% Max Effic. Torque: 46.68 mN.m Max Effic. RPMs: 29067 Max Effic. Current: 11.35 amps Max Effic. Output Power: 142.2 Watts At Max Output Power: Max Output Power Efficiency Percent: 36.25% Max Output Power Torque: 138.5 mN.m Max Output Power RPMs: 17479 Max Output Power Current: 29.15 amps Max Output Power: 253.7 Watts Dimensions: Motor Body Length: 2.26in (57.5mm) Motor Body Diameter: 1.41in (35.8mm) Weight: ~8.6oz (215g) Mounting holes (2): M3 Mounting Holes: 25mm apart Shaft Diameter: 3.175mm / 1/8th inch Shaft Style: Round Shaft Length: 16mm (~12mm usable exposed) Designed as a replacement for some children’s ride on vehicles and Fisher Price Power Wheels Also suitable for hobby, DIY, and repair/replacement applications such as in Power Tools, Drills, and other cordless outdoor tools. As well as a popular choice for Do-it-Yourself choice for Electronics projects, Robotics, Ride-on Toys, Gate Openers, and More. Fit your existing gear or pinion for your application for 1000s of uses ***PLEASE NOTE: Will not work in all models, be sure to check your specific application's requirements before purchasing If you're replacing a motor please be sure to verify the motor matches before buying Edition: 8.4v DC 550 Motor (14000RPM) " Model RS-550 (550 Series) 8.4v 12T Fan Cooled DC Motor Internal Winding: 12 turns per armature Shape of Motor Housing: Round Type of Motor: Carbon Brushes Construction: Anisotropic Magnet or Rare Earth Magnet Optimal Voltage: 8.4 volts Operating Voltage Range: ~6v - 9v Unloaded (free spinning): No Load RPM: 13907 No Load Current: 1.2A Stalled (max load): Stall Torque: 291.4 mN.m Stall Current: 48.78 amps At Maximum Effic.: Max Effic. Percent: ~77% Max Effic. Torque: 39.51 mN.m Max Effic. RPMs: 12021 Max Effic. Current: 7.65 amps Max Effic. Output Power: 49.8 Watts At Maximum Output Power: Max Output Power Effic. Percent: 50.57% Max Output Power Torque: 145.7 mN.m Max Output Power RPMs: 6954 Max Output Power Current: 24.99 amps Max Output Power: 106.2 Watts Dimensions: Motor Body Length: 2.26in (57.5mm) Motor Body Diameter: 1.41in (35.8mm) Weight: ~8.6oz (215g) Mounting holes (2): M3 Mounting Holes: 25mm apart Shaft Diameter: 3.175mm / 1/8th inch Shaft Style: Round Shaft Length: 16mm (~12mm usable exposed) Designed as a replacement for Titan 550 Motor for use in Traxxis 3785 Also suitable for hobby, DIY, and repair/replacement applications such as in Power Tools, Drills, and other cordless outdoor tools. As well as a popular choice for Do-it-Yourself choice for Electronics projects, Robotics, Gate Openers, and More. Fit your existing gear or pinion for your application for 1000s of uses *** PLEASE NOTE: Will not work in all models, be sure to check your application's requirements before purchasing If you're replacing a motor please be sure to verify the motor matches
