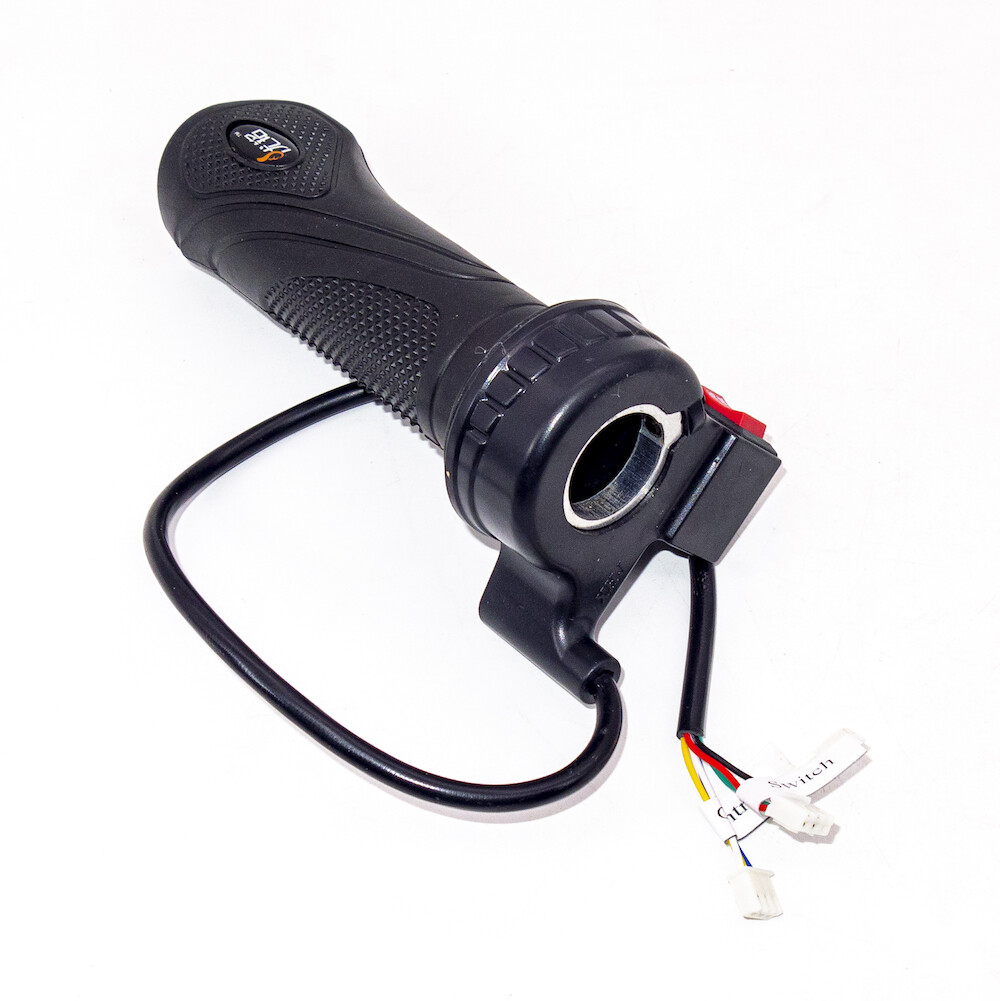

Handle Hall Throttle 100A Reversible PWM DC Motor Speed Control Soft

Features: Larger current, max current up to 100A, continuous operating current of up to 60A. Reversing control motor, dual relay control, can withstand higher current. Programmable to meet subsequent extensions. Soft start to reduce the large current shock. Brake after power off. Controlling the motor speed by the handle throttle. Technical Specifications: Power requirement: DC 10-50V Rated current: 60A (Maximum output current: 100A) Frequency: 15kHZ Control Motor Power: 0.01-5000W, 12V: 1200W(max), 24V: 2400W(max) , 36V: 3600W(max), 48V: 4800W(max) Standby current: 0.01A Regulation range: 0-100% Controller Size: 145 x 78 x 38 mm How to use: There are two ON/OFF switches on the controller. One is power switch, another is reversal switch. The power switch is on, the controller is powered on. The power switch off, the motor will be brake. The reversal switch on, the motor forward, the switch off, the motor stop, the switch on another side, the motor backward. When you twist the handle, the motor will accelerate. Package include: 1X Reversible DC Motor Speed Controller
